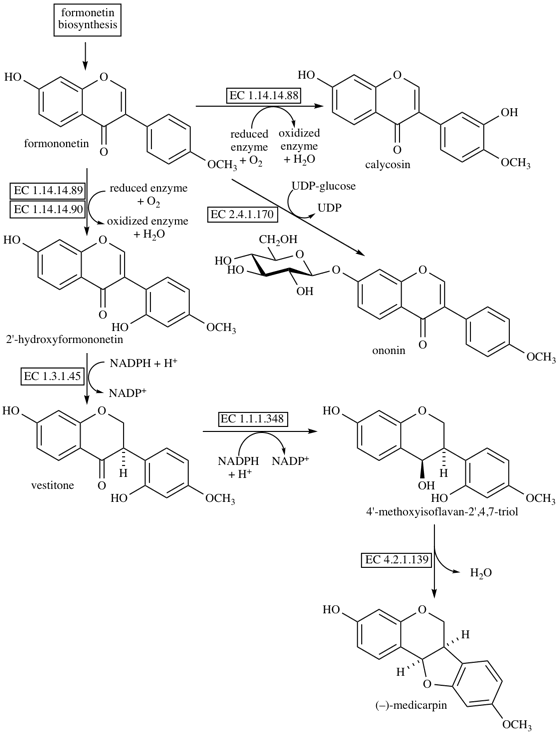

Medicarpin and Formononetin Derivatives Biosynthesis

When cursor points to a box further details will be displayed in a tooltip window. If you click on the box you will change to appropriate reaction scheme or enzyme specification.

© IUBMB 2004


For the numbering and classification of flavonoids click here.


Return to:
enzymes homepage.
formonetin biosynthesis
EC 1.1.1.348 vestitone reductase
EC 1.3.1.45 2'-hydroxyisoflavone reductase
EC 1.14.13.52 see EC 1.14.14.88
EC 1.14.13.53 see EC 1.14.14.89
EC 1.14.13.89 see EC 1.14.14.90
EC 1.14.14.88 isoflavone 3'-hydroxylase
EC 1.14.14.89 4'-methoxyisoflavone 2'-hydroxylase
EC 1.14.14.90 isoflavone 2'-hydroxylase
EC 2.4.1.170 isoflavone 7-O-glucosyltransferase
EC 4.2.1.139 medicarpin synthase
